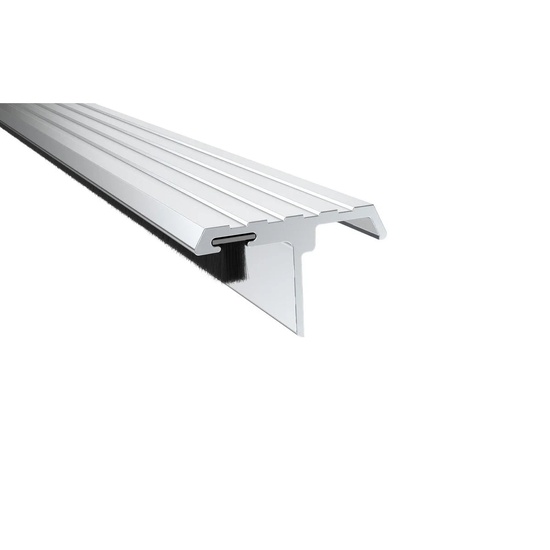

Pemko 355CV84 84" 7' T Overlapping Astragal with Vinyl Clear Aluminum Finish

The 355CV84 T overlapping astragal mounts to the surface of double door assemblies to seal the gap between doors. This aluminum weatherstrip installs on single active double doors where one door stays closed most of the time. It prevents smoke infiltration, air leakage, sound transmission, and light passage between doors.

Pemko designed the 355 series with clear anodized aluminum construction and vinyl insert weatherstripping. The T-shaped profile overlaps the inactive door when closed, creating a continuous seal along the door edge. Mounting hardware comes included for surface installation on the door face or frame.

Material	Clear Anodized Aluminum
Insert Type	Vinyl
Length	84 inches (7 feet)
Mount Type	Surface Mounted
Warranty	5 Years Limited

This astragal meets UL 10C positive pressure fire testing standards and UL 1784 air leakage requirements. ASTM E283 testing confirms weatherization performance. For fire door assemblies requiring UL 10C fire ratings, this astragal maintains the door's listed fire performance. GREENGUARD Gold certification verifies low chemical emissions for indoor air quality in occupied buildings where NFPA 101 Life Safety Code governs egress requirements.
